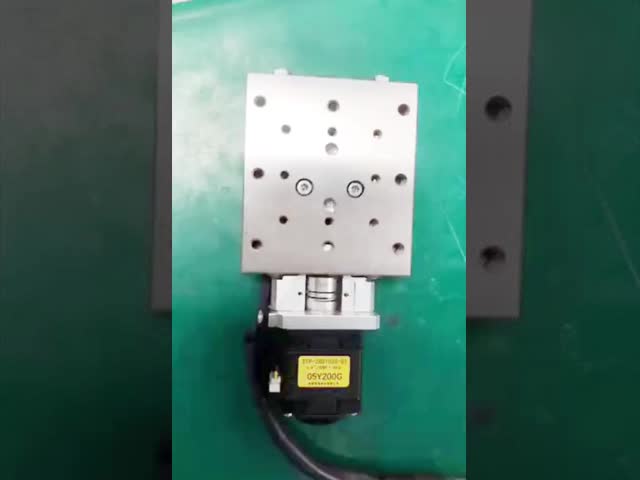

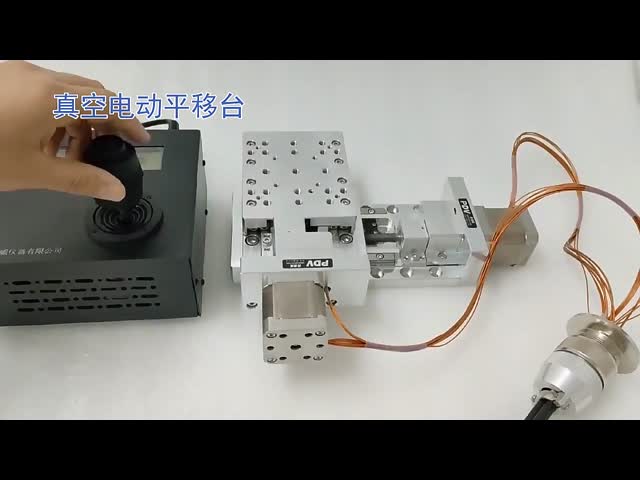

Stainless Steel Linear Ball Guide Precision Displacement Stage PB110-20
Product description:

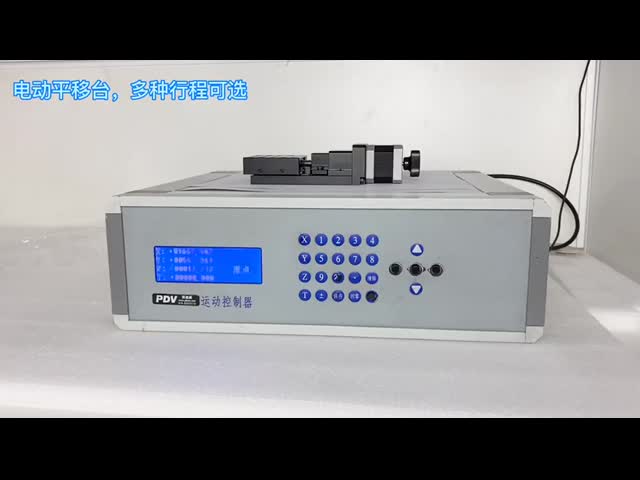

Electric sliding platform is driven by linear motor, guided by linear slide guide, and controlled by closed-loop device (usually grating ruler). It is a kind of high precision, high speed and high load capacity electric linear sliding platform. PDV has been committed to the research of linear motor slide, combined with years of accumulation and experience in improving motion accuracy, with our industry-leading processing, assembly, testing technology, we can provide you with high-quality, all-round linear motor slide solutions.
Product features:
1. The main body is made of stainless steel to achieve high rigidity.
2. The guiding mode adopts linear ball guide rail, which realizes high precision.
3. It can correspond to a variety of chasing processing to meet the installation and use in different occasions.
4. Electroless chemical nickel is selected for the surface treatment of the main body to effectively prevent the reflection of light, especially in the field of optics.
5. The stroke and table size can be freely selected according to the actual needs.
Product parameters:
| Model | PB110-20 |
| Travel | ±10mm |
| Platform | 60×60mm |
| thickness | 20mm |
| guide | Linear ball guide |
| Driving mode | Grinding ball screw, lead 1 mm |
| Surface treatment and main body material | Stainless steel / electroless nickel |
| dead weight | 0.8kg |
| Maximum speed | 10mm/sec |
| One way positioning accuracy | 15μm |
| Repeat positioning accuracy | ±3μm |
| idle | 4μm |
| Parallelism | 20μm |
| Straightness of motion | 3μm |
| Motion parallelism | 10μm |
| load | 10kgf |
| electric machinery | Two 28 step motors |
| Step angle | 1.8° |
| supply voltage | DC24V±10% |
| sensor | 1 origin sensor 2 limit sensor |
| Entry cable | 12Pin male coaxial cable |
Product dimension drawing:
